Moxa

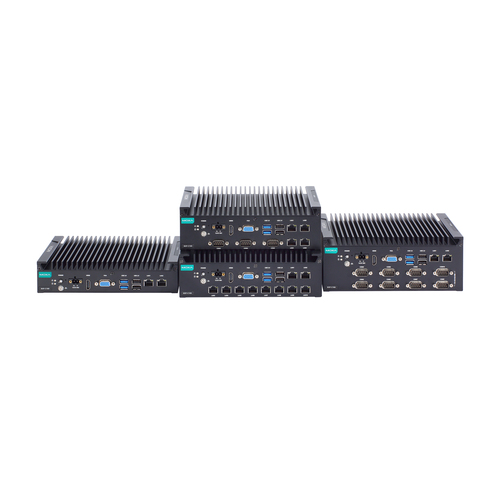

BXP-C100 Series

The BXP-C100 wall-mount computers are powered by a 11th Gen Intel® Celeron® or Intel® Core™i5, or i7 processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover design for the battery slot secures the battery in place and ensures stability in all operating environments. Features and Benefits - Box-type computer with fanless design - 11th Gen Intel® Celeron® or Intel® Core® processor - Rich interface options for up to 10 serial and 10 LAN ports - Compact size to fit most field applications - -30 to 60°C operating temperature range

Manufacturer

Moxa

Product sheet

moxa-bxp-c100-series-datasheet-v1.1.pdf

Moxa

MOXA and Moxa MTSC.png

Moxa is a Taiwanese manufacturer of network products. They offer ethernet switches and converters, routers, protocol gateways, serial servers, industrial computers, displays and much more.

The company is a supplier to a variety of different markets such as to oil and gas, railway, powerstations, industrial manufacturing, marine, building automation and other markets.

www.moxa.com

  • BOXER-6639M Extreme Computing Power & Graphic Display Capability

    BOXER-6639M Extreme Computing Power & Graphic Display Capability

    Aaeon

    Extreme Computing Power & Graphic Display Capability Desktop Grade Socket Type Processor with Longevity Support DDR4 ECC or Non-ECC SODIMM, Up to 32GB VGA + HDMI x 2 Triple Display, HDMI 4K Display 802.3at GbE PoE x 4 (Max. 80W in total) USB 3.0 x 6 Industrial-grade Intel® GbE LAN x 3 Supports BIOS Selectable RS-232/422/485 x 6 Easy Access Design Wide Range DC 12~36V Input 34-bit Digital Input and OutputRS-232/422/485 x 6 USB Type A x 6 for USB 3.0 USB Type A x 2 for USB 2.0 RJ-45 x 3 for GbE LAN RJ-45 x 4 for PoE (802.3at, max. 80W in total) DB-44 for 34-bit Digital I/O (5V) CFast™ slot x 1 SIM card slot x 1 Power On/Off Button x 1 2 pin Remote power on/off Reset switch Mic-in x 1 Line-out x 1 Antenna opening x 2 SYS LED indicator x 1 HDD LED indicator x 1 DB-15 x 1 for VGA HDMI v1.3 x 2 DC-in 3-pin terminal block (12~36V)

  • Boxer-6842M High Computing Power

    Boxer-6842M High Computing Power

    Aaeon

    High Computing Power Intel® Coffee Lake-S LGA 1151 Desktop Processor HDMI x 2 for Dual Display Support C246 PCH Support PCIEx16 + PCIEx4/ 2PCIE x8 (in x16 slot) + PCIE x4 Single Power Input (for both System & one Graphics Card) Fanless System (A3) or Fan System with PWM function (A2/A4) Support dual Graphics Cards with Two Power Inputs (A4)

  • ICO520 DIN-rail Fanless Embedded System
  • BOXER-6643 Fanless Embedded Box PC

    BOXER-6643 Fanless Embedded Box PC

    Aaeon

    Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor, DDR4 slot x2, up to 64GB, Support High Speed NVMe storage (M.2 2280) GbE LAN x 1 (Intel I219) + 2.5GbE LAN x 1 (Intel I225) Supports M.2 3052 B Key for 5G module Wide Range 9-36V DC input Wide Range -20~60 °C Operating Temperature
