DS-MPE-DAQ0804 Analog & Digital I/O PCIe MiniCard
Diamond Systems
The DS-MPE-DAQ0804 is a rugged, low cost data acquisition PCIe MiniCard module with both analog and configurable digital I/O.
Diamond Systems

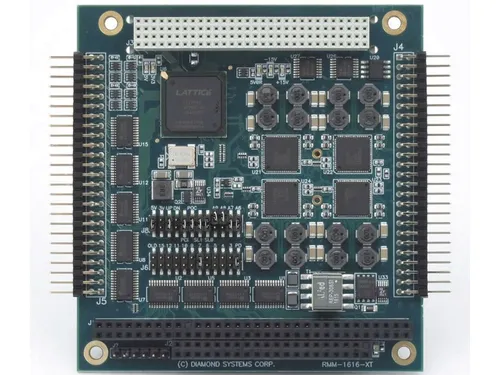

MM-1616AP 4/8/16 channel 16-bit Analog Output PC/104 Module with Digital I/O
The Ruby-MM-1616AP/816AP/416AP series provide up to 16 channels of 16-bit resolution analog voltage or current output in the PC/104-Plus form factor. The output range for each channel can be individually selected for 0-5V, 0-10V, ±5V, ±10V, 0-20mA, 4-20mA, or 0-24mA. All outputs are updated simultaneously, either with a software command or in response to an external signal. A waveform generator is available on up to 16 channels with simultaneous updating of all channels.
The board also includes 48 lines of digital I/O, 40 lines of byte-wide and 8 lines of bit-wide, two 32-bit counter/timers, and four 24-bit pulse width modulators. Other features include +5V only operation, individual DC/DC converters with filtered outputs for each DAC to supply ±15V for operation, and a six layer circuit board to bury and shield the analog signals.
Diamond Systems
Diamond Systems Corporation, basert i Sunnyvale, California, har siden 1989 levert robuste, I/O-rike innebygde datasystemer. Selskapet tilbyr et bredt spekter av produkter, inkludert enkeltkortdatamaskiner (SBC-er), I/O-utvidelsesmoduler, Ethernet-svitsjer og strømforsyningsløsninger, designet for å fungere i krevende miljøer.
Deres produkter brukes i ulike sektorer som transport, energi, luftfart, forsvar, produksjon, medisin og forskning. Diamond Systems er kjent for sin innovative bruk av standarder som PC/104 og COM Express, samt for å levere skreddersydde løsninger som møter spesifikke kundebehov.
Produktene er utviklet for å tåle ekstreme temperaturer, vibrasjoner og andre krevende forhold, noe som gjør dem godt egnet til militære applikasjoner og industriell automatisering.
Les mer: Diamond Systems
-
-
DMM-XT 12-bit Analog I/O PC/104 Module
Diamond Systems
Two optional analog outputs provide 12-bit resolution over a 0-5V or user-adjustable range with 8mA drive current and 4μs settling time.
-
MM-16RP-AT PC/104-Plus 16-Bit Analog I/O Module with Autocalibration
Diamond Systems
The DMM-16RP-AT features top performance and flexibility for a mid-range price. It has 16 single-ended / 8 differential analog voltage inputs with both unipolar and bipolar input ranges, programmable gain, and a maximum sampling rate of 100KHz
-
MM-32DX-AT Analog I/O PC/104 Module with Advanced Automatic Autocalibration
Diamond Systems
DMM-32DX-AT is Diamond Systems’ most advanced embedded A/D board. It includes a comprehensive suite of analog and digital features to fit a wide variety of embedded application needs
