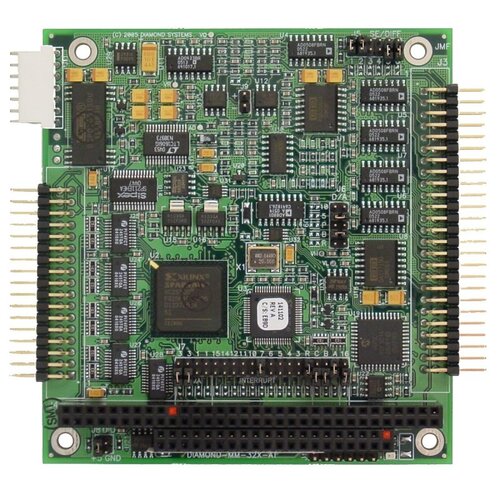

MM-32DX-AT Analog I/O PC/104 Module with Advanced Automatic Autocalibration

DMM-32DX-AT is Diamond Systems’ most advanced embedded A/D board. It includes a comprehensive suite of analog and digital features to fit a wide variety of embedded application needs: The 32 A/D input channels feature high-accuracy 16-bit resolution, 250KHz maximum sampling rate, programmable input ranges, and user-selectable single-ended / differential configuration. The 4 D/A output channels feature user-selectable output ranges as well as a programmable waveform generator feature, 16-bit standard, 12-bit optional. The 24 digital I/O feature bit by bit direction programmability as well as buffers for enhanced output current of -15mA (logic 1) / 64mA (logic 0). The on-board programmable counter/timer circuitry includes a 32-bit counter/timer for A/D and D/A sample timing, as well as a 16-bit counter/timer for general counting, timing, and programmable interrupt functions. Extended temperature operation of -40°C to +85°C is tested and guaranteed. Using our patented auto-autocalibration technology, DMM-32DX-AT will provide accurate analog measurements across its entire rated operating temperature range, ensuring reliable performance for critical applications. Our advanced Universal Driver software is included free with DMM-32DX-AT and all our SBC and I/O boards. The Universal Driver provides a programming library that simplifies control of all the board’s features and enables you to develop your application software quickly. Board uses only ceramic capacitators for durability in high altitudes and other harsh environments.
