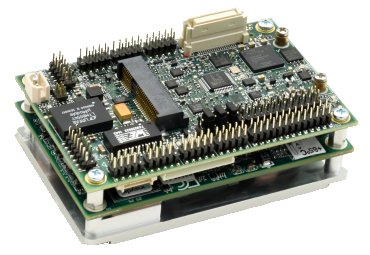

Zeta Ultra-Small SBC Using COM Express Type 10 CPU Modules

The Zeta COM Express SBC family of ultra-small embedded computer boards combines a COM Express Mini CPU module with a same-size carrier board to create a complete embedded PC. Designed in the COM Express Mini Type 10 form factor (84 x 55mm/ 3.3 x 2.2 in), Zeta provides an ultra-compact, industry-standard form factor solution. 3 key components pre-assembled: A Computer on Module (COM) providing the core CPU functionality A carrier board providing the I/O transceivers and connectors, power supplies, and expansion sockets A heat spreader with a flat exterior surface for direct mounting and heat transfer to the system enclosure This layered architecture offers the highest functional density for any given footprint. As a comparison, Zeta offers functionality and performance equivalent to Diamond's top-selling Aries SBC at just 40% of the size. Zeta currently supports three processor options: Intel Bay Trail E3845 1.91GHz Quad Core CPU with 4GB RAM Intel "Apollo Lake " E3940 1.6GHz quad-core CPU with 8GB RAM and 64GB eMMC Intel "Apollo Lake " E3950 1.6GHz quad-core CPU with 8GB RAM and 128GB eMMC Zeta's small size and high feature density make it an ideal choice for mobile applications. It stands ready to meet the challenges of these environments with a wide range 6-36VDC input voltage, a -40 to +85C operating temperature range, and fanless heat spreader cooling (heat sink options are available). Benefits of COM-based SBCs The use of interchangeable industry-standard CPU modules on Zeta offers two important system designer benefits: Performance scalability: You can design multiple applications based on a consistent hardware platform and select the CPU that best fits the price / performance / power requirements of each one. In addition, as time goes on and your application needs more horsepower to support increased functionality, you can simply upgrade to a newer CPU with minimal to no redesign effort. Long product life: The majority of today's x86 embedded processors offer limited lifecycles of 5-7 years, so any long-life product dependent on an x86 single-board computer (SBC) is likely to require redesign sometime during its lifecycle. Using industry-standard COMs lets you easily migrate to a new generation CPU module in the exact same form factor and containing the same feature set, with virtually no hardware or physical redesign efforts. Zeta is ideal for long-life applications such as Military, Medical, and Transportation.
