SGB8850200 Three phase power solid state relay 50A
Celduc
Three phase, (3x)50A, SGB range. These relays have LED indicators
Celduc

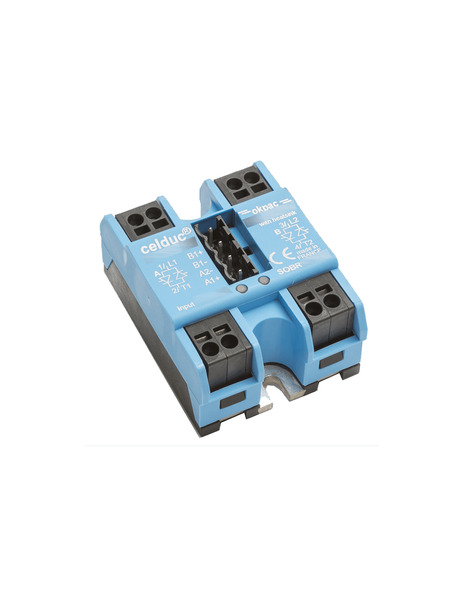

SOBR965560-TH Dual Power Solid State Relay 2x24A
Dual Zero Cross Solid State Relay especially designed for AC-51 resistive loads.
Back to back thyristors on output with TMS2 (*) technology with a long lifetime expectancy: 24 to 600VAC 2x75A. Current limited by the connectors at 24A(*).
High I²t model >6000A²s for possible MCB (Miniature Circuit Breaker) protection.
2 inputs with green LED visualization for each input.
1 commun internal connection on input on this SOBR967560.
Different possibilities for input connector. Input connector is not delivered with the SSR. Select input connector in pages 5 in the datasheet.
Push-in spring power terminals
Designed in conformity with IEC/ EN60947-4-3 (VDE 0660-109) et IEC/EN60335-1 (VDE 0700-1);
Thermal Pad included in this référence SOBR965560-TH.
Celduc
Celduc er en fransk produsent som spesialiserer seg på solid state-releer (SSR) og magnetiske nærhetssensorer. Selskapet ble grunnlagt i 1964 og har hovedkontor i Sorbiers, Frankrike. Celduc tilbyr et bredt spekter av produkter for industriell automatisering, inkludert enfase, tofase og trefase SSR-er, samt magnetiske sensorer og reed-releer. Produktene deres brukes i ulike bransjer som jernbane, medisin, emballasje og elektronikk.
Les mer: Celduc
-
-
SGT9874300 Solid State Relay 75A
Celduc
Three phase, (3x)75A, SGT range. These relays have LED indicators
-
SGB8890200 Solid State Relay 125A
Celduc
Three phase, (3x)125A, SGB range. These relays have LED indicators
-
.jpeg)
SOB5 Solid State Relay 25A
Celduc
SOB range New 2 phases relays in okpac® IP20 housing. Removable connector for control allowing many wiring possibilities eg. FASTONS, springs, screw and so on (please consult us).
