Weintek

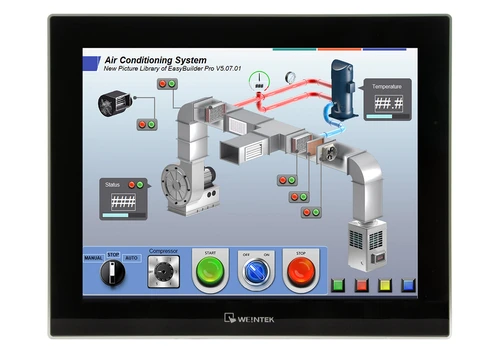

cMT3152X

15" 1024 x 768 IPS LCD Quad-core Cortex-A17 CPU with High Performance with dedicated 3D Processor Tempered Glass, Capacitive Type Touchscreen Fanless Cooling System Built- in 4GB Flash Memory and RTC SD Card Slot Supports SD/SDHC Cards CAN Bus Supports CANopen Protocol COM1 / COM3 RS-485 2W Supports MPI 187.5K, please use one at a time. COM1 / COM3 RS-485 & CAN Bus Built-in Isolation Built-in Power Isolator NEMA4/IP66 Compliant Front Panel Built-in EasyAccess 2.0 License

Manufacturer

Weintek

IP code rating

IP66 Front

Material

Plastic; Aluminum

Programming software

Easybuilder Pro; Codesys

Remote access

Yes

Screen size

15''

Product sheet

cMT3152X_Datasheet_ENG.pdf

Mounting

Panel

Weintek

Since the foundation of the company in October of 1995, WEINTEK Labs., Inc. has been committing itself to being a leading-edge designer and manufacturer of graphic operator interfaces, also known as HMI (Human Machine Interfaces), in Taiwan.

Their easy to use HMI software “Easybuilder Pro” supports more than 350 different drivers, to help the customers use whatever PLC, inverter or other control system they prefer.
