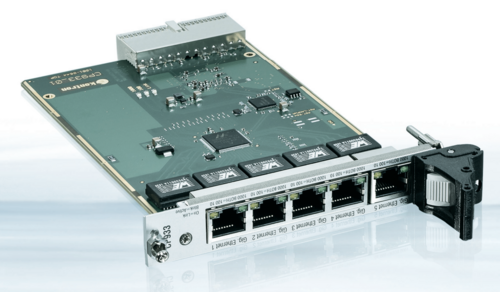

CP933 - GIGABIT ETHERNET SWITCH WITH INTEGRATED NIC

The CP933 is a 6-port unmanaged layer 2 Gigabit Ethernet Switch with an integrated NIC. It is designed for plug&play operation in Industrial applications. Its robustness is well suited for any deployment in harsh environments. The CP933 supports 10/100/1000Base-T Ethernet on fi ve ports with RJ45 connectors; each with two status LEDs. The sixth port is connected through a Gigabit Ethernet NIC to the Master CPU of the CompactPCI Backplane segment. CP933 is based on the Marvell® Link Street® 88E6352 Gigabit Ethernet Switch. It integrates a high-performance non-blocking gigabit switch fabric with state-of-the-art features such as 1 Mb of packet memory, Jumbo Frame support of up to 10 kByte, and 8K MAC addresses. A high performance look-up engine with support for up to 8K MAC address entries is reducing the switch’s latency to a minimum.
